If you wish to link DOKA to RIVO, then you need to configure DOKA to have RIVO as a channel of communication.

The following setup is required.

Static data

Parties

This article will step through what is needed.


Static Data

Use the transaction DBISTH to configure the following code tables

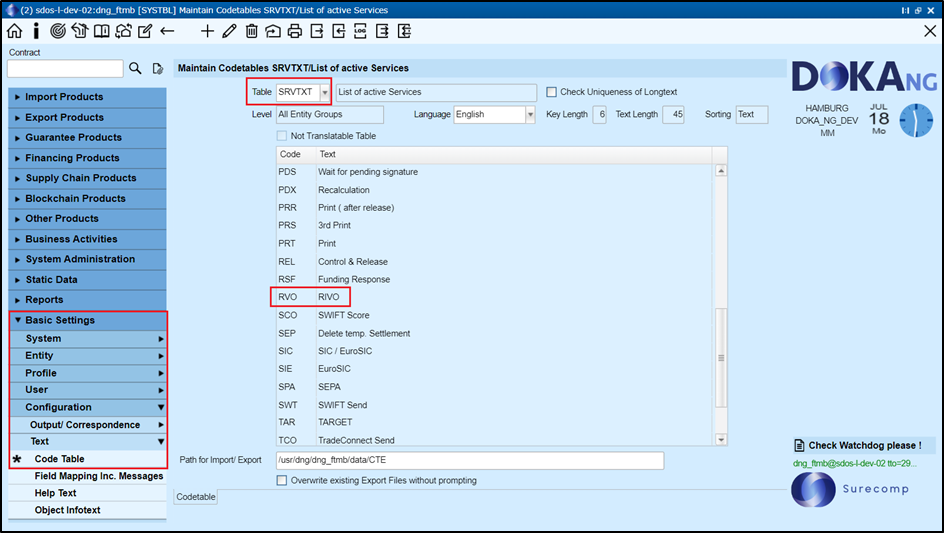

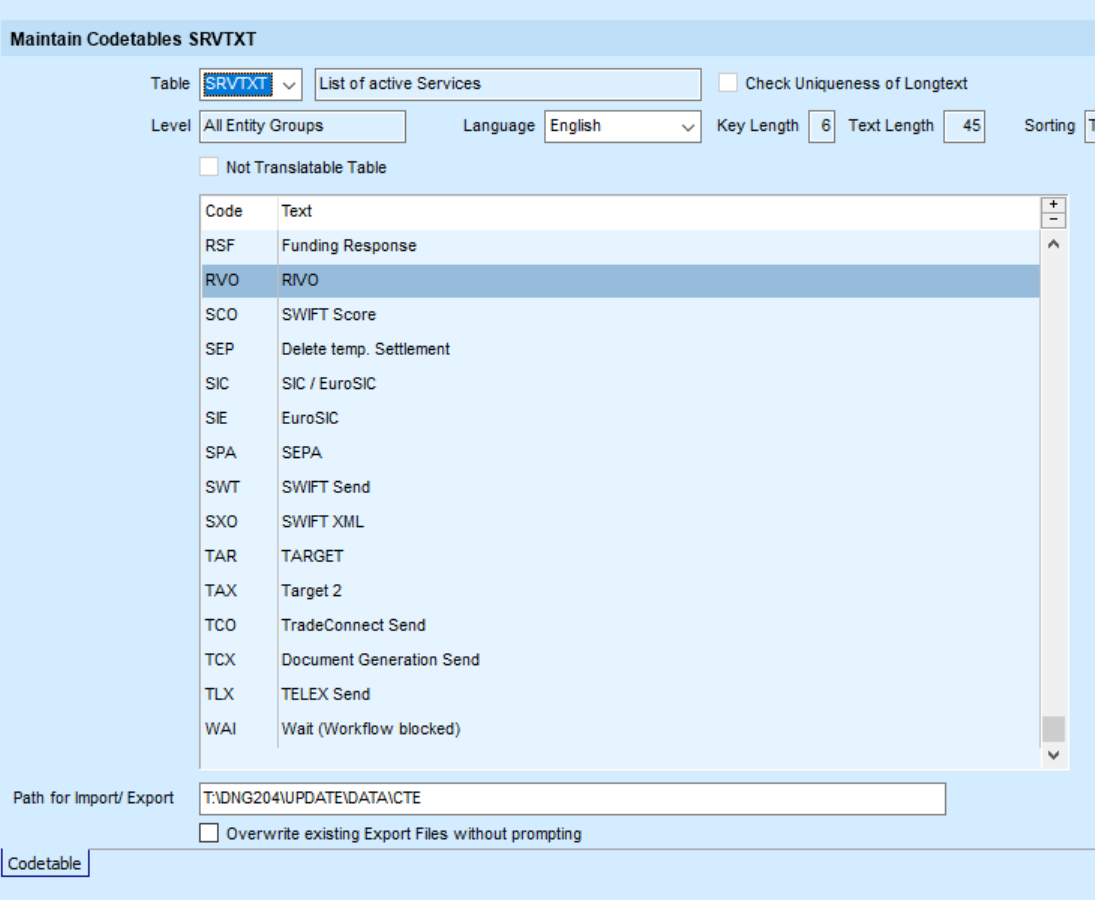

SRVTXT

Add below Selected  value to this table.

APFTXT

Add the below red framed values to this table.

CORTYP

Add the below red framed values to this table.

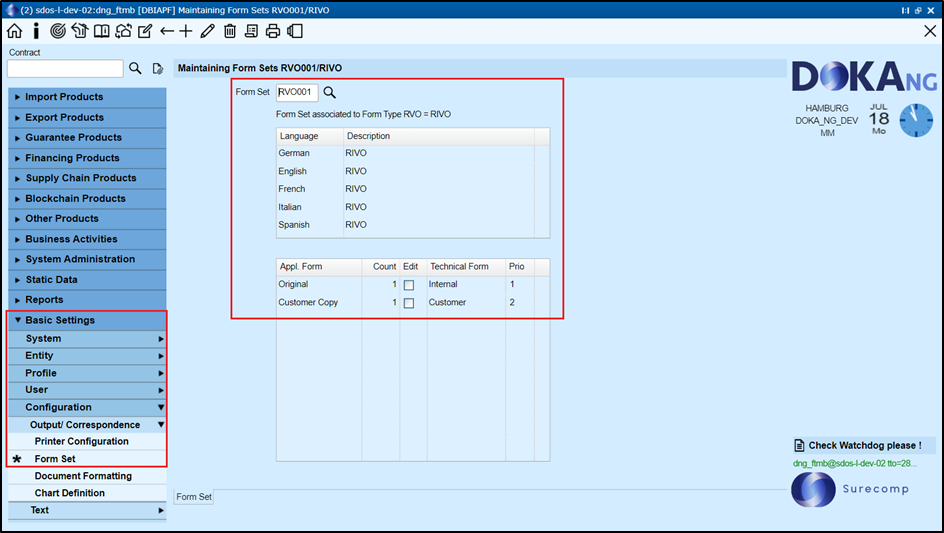

Form Set

Configure the below two form sets using transaction DBIAPF:

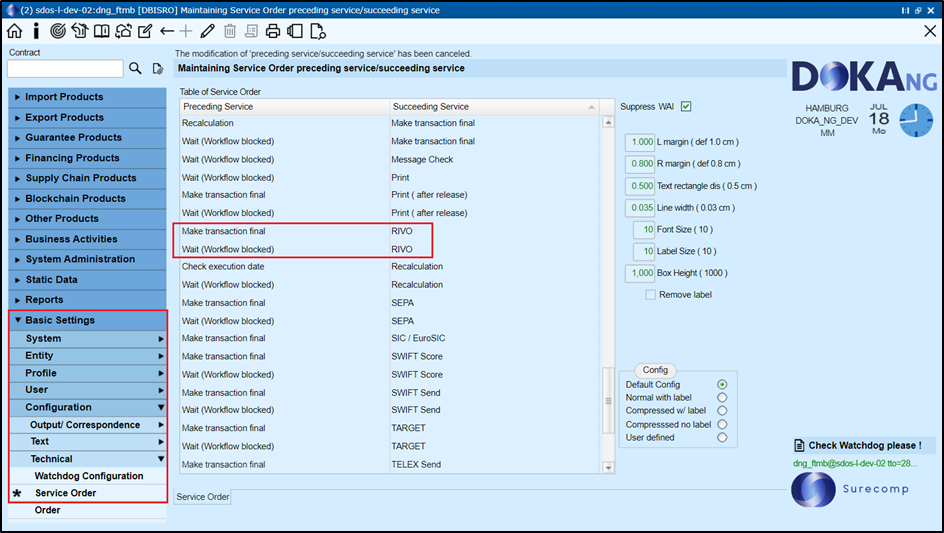

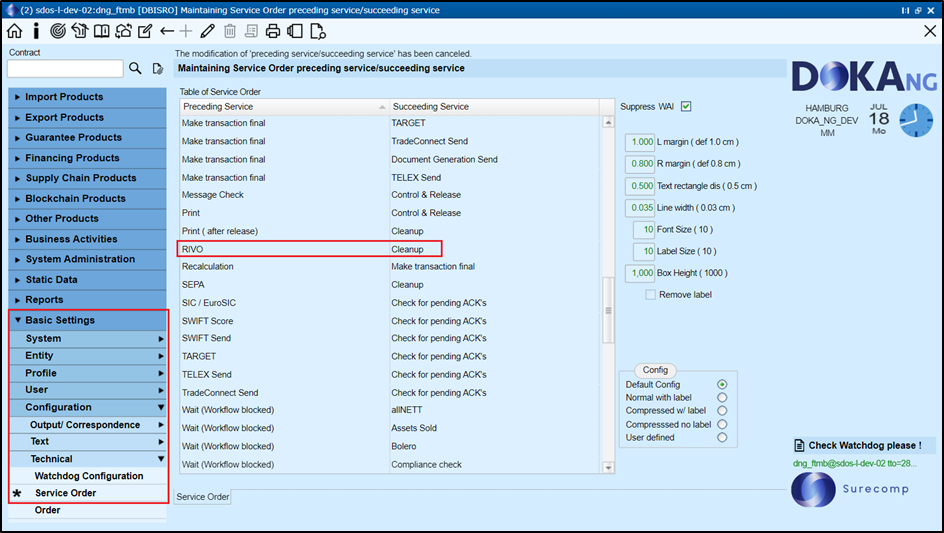

Service Order

Add below red framed values to this screen using DBISRO.

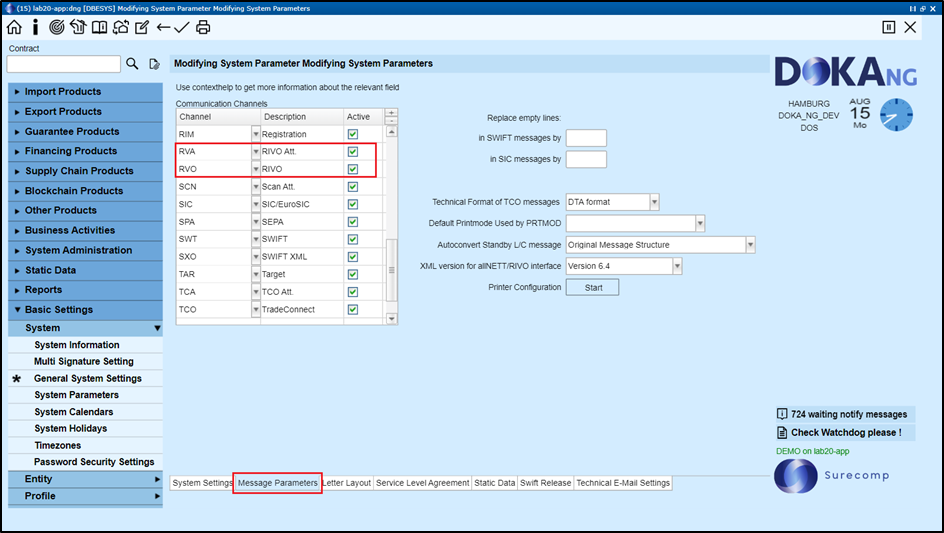

General Settings

Activate RIVO in panel General Parameters as shown below:

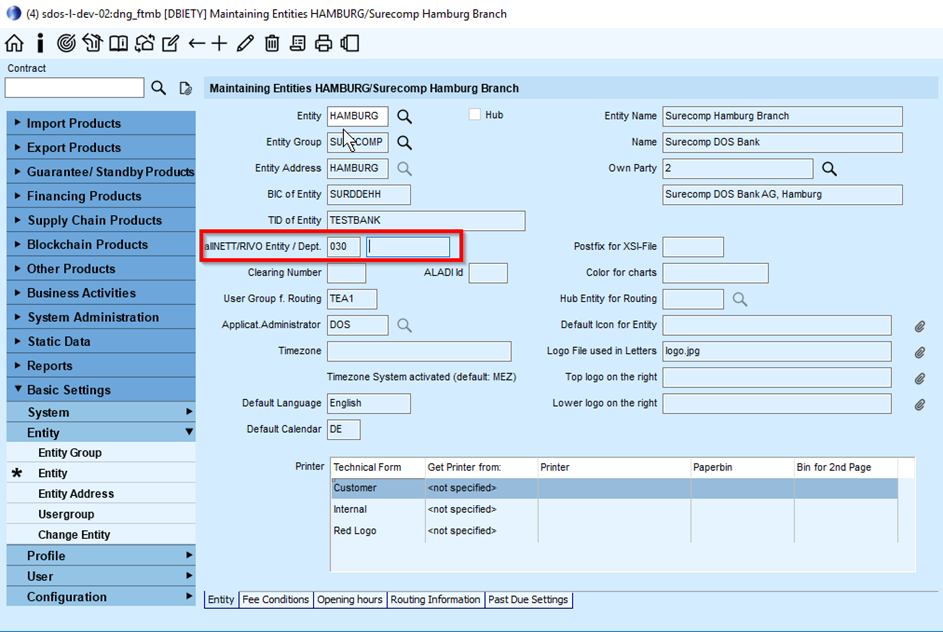

Entity

Set the allNETT/RIVO Entity to 030 in DBIETY

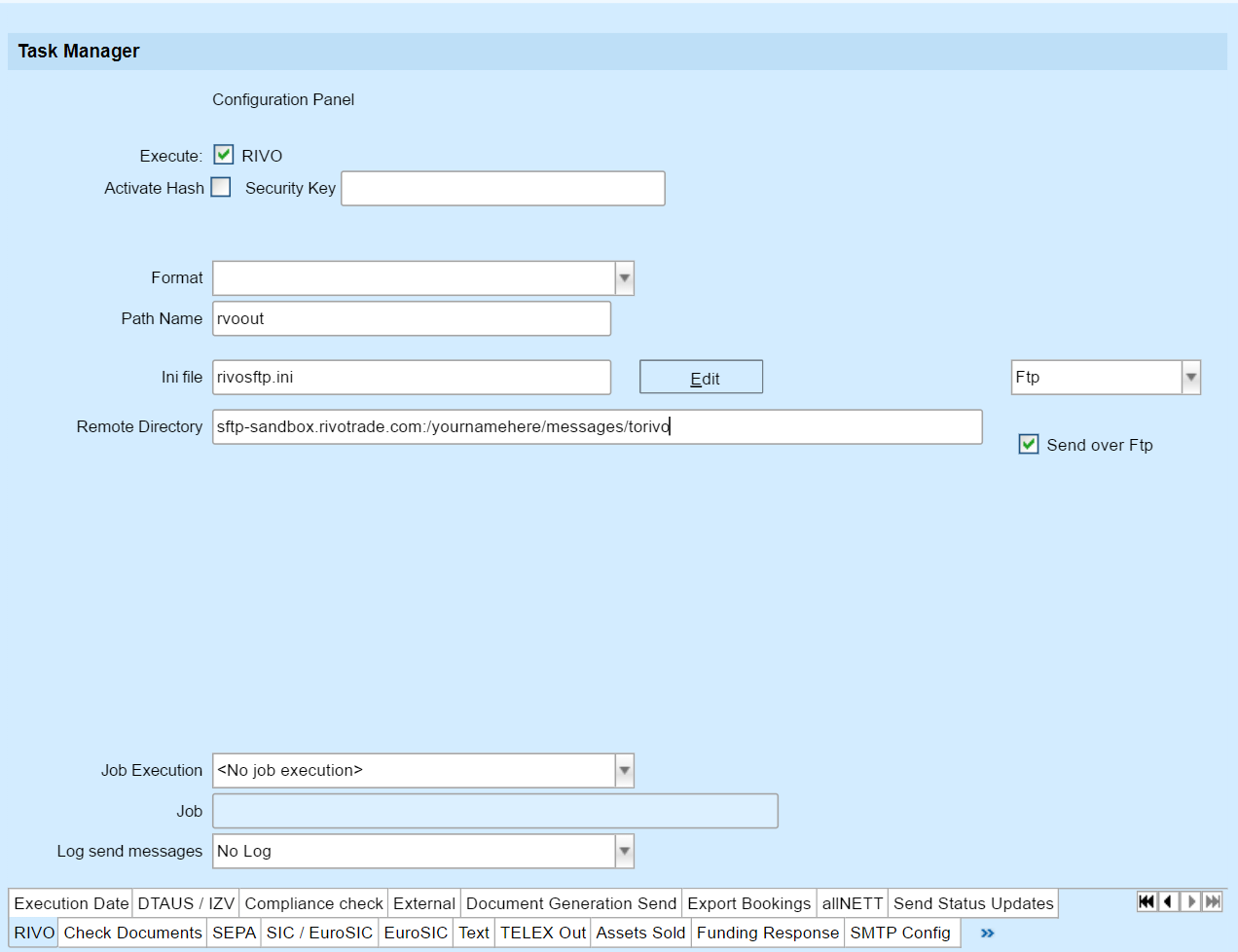

Message Locations

In the outgoing messages manager MGRTSK enable RIVO as a Service and set the message location

Path = rvoout
ini file = where the SFTP credential are set
remote directory = RIVO SFTP folder we set up for you e.g. in our sandbox it would be something like

sftp-sandbox.rivotrade.com:/yournamehere/messages/torivo

Party Set up

To use RIVO as a channel , the Party you wish to communicate with via RIVO needs a small change too.
First, the Corporate (your customer) needs to register in RIVO

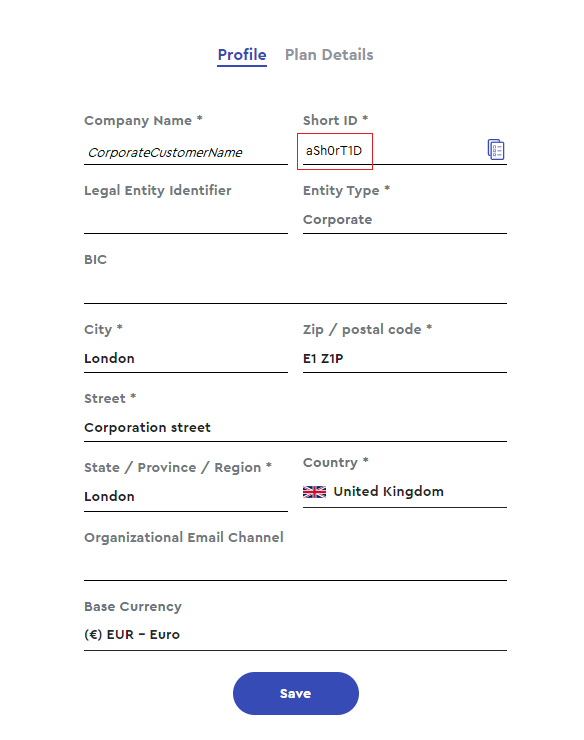

Then, they need to give you their RIVO short ID , which can be found in the Organization Profile page in RIVO (Administrator > Organization Profile )

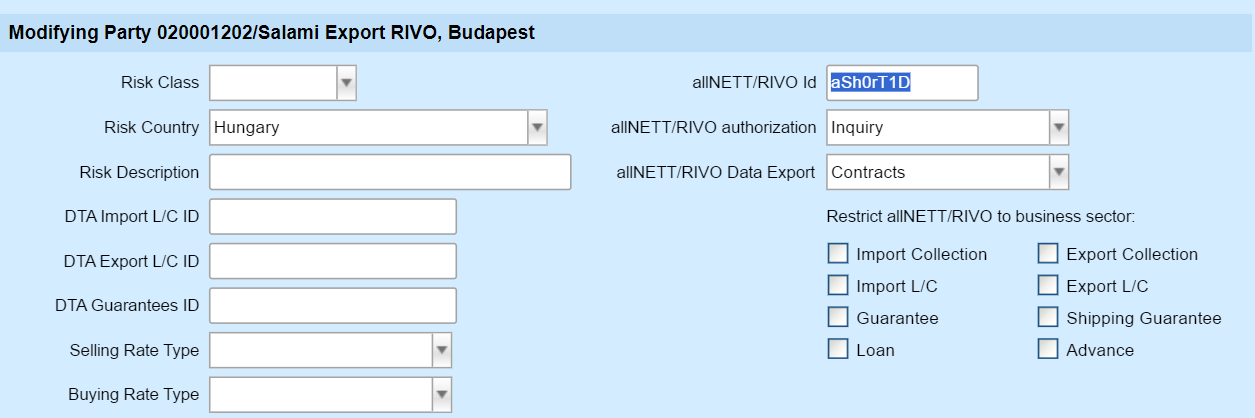

You take that and set it in the Details panel of the Party

You can also configure which modules can be used for RIVO for this party, or leave unticked for everything.

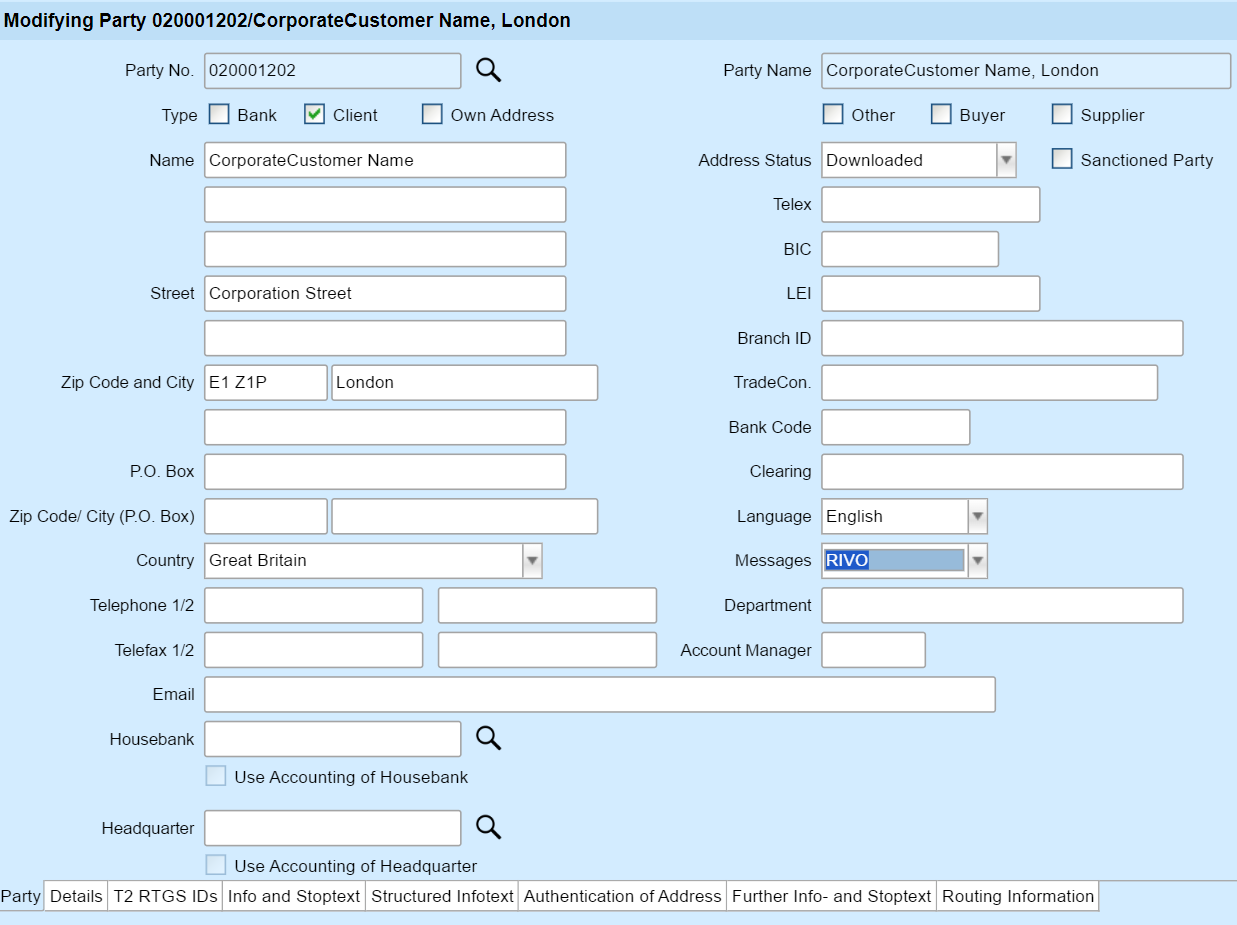

You also need to set their Messages preferred channel to be RIVO in the main Party panel


Now any messages for them will be defaulted to use RIVO as their channel
